線性導軌的安裝方法!
來源:http://www.feicui77.cn/ 日期:2019-03-08 發布人:

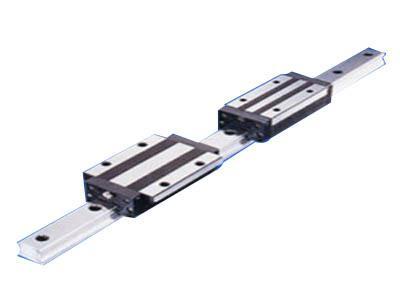

線性導軌就是我們平常稱的直線導軌,一般稱為線性導軌或者是線性滑軌。那么這么精密的零件怎么裝置呢?好裝置嗎?下面教你線性導軌的裝置方法。
Linear guideway is what we usually call linear guideway, which is generally called linear guideway or linear slideway. So how to install such a precise part? Good device? Here's how to install linear guides.
一步,在裝置之前必須要將機械裝置面上的毛邊、雜質、污物以及外表的劃痕進行。
The first step is to remove the rough edges, impurities, dirt and scratches on the surface of the mechanical device before the device is installed.
第二步,將滑軌輕輕地安頓在床臺上,輕擰緊裝派配螺絲,使滑軌的基準面與裝置面可以輕輕地靠緊。ABBA的線性導軌雙面都是基準面,不需求特別的參閱記號。
The second step is to gently place the slide rail on the bed and tighten the matching screw so that the reference surface and the device surface of the slide rail can be gently tightened. ABBA's linear guides are datum on both sides and do not require special reference marks.
第三步,依照次序把滑軌的定位螺絲擰緊,讓軌道跟橫向的裝置面緊密的相接在一起。
The third step is to tighten the positioning screw of the slideway in order to make the track closely connected with the transverse device surface.


第四步,運用扳手將裝置的螺絲擰緊,擰的次序是從中心開端向端部次序的擰緊,這樣裝置會愈加結實。
The fourth step is to tighten the screw of the device by using a wrench. The order of tightening is from the beginning of the center to the end, so that the device will become stronger.
較終,用扭力扳手,依照規定的扭矩把滑軌的定位螺絲慢慢地?cái)Q緊。
Finally, the positioning screw of the slideway is tightened slowly with the torque wrench according to the prescribed torque.
其實裝置線性導軌沒有想象中的那么費事,只不過在裝置中要小心、細心,切記需求擰螺絲的當?shù)匾欢ㄒ獢Q緊,這樣運用時才干更。
In fact, the linear guide of the device is not as laborious as imagined, but in the device to be careful, careful, bear in mind the need to screw the local must be tightened, so that the use of dry and safer.
以上信息是我們導軌絲杠整理發布希望對大家有所幫助我們的網站是:http://www.feicui77.cn!
The above information is our guide screw finishing and publishing hope to help you all on our website is: http://www.feicui77.cn!
