直線導軌的安裝方法有哪些?
來源:http://www.feicui77.cn/ 日期:2021-03-03 發布人:

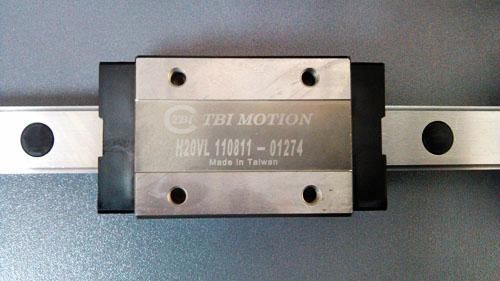

直線導軌齒輪齒條傳動具有傳動功率大、傳動速度快、可拼接任意長度;直線導軌具有速度快、定位準確的優點。超長直線導軌是一種比一般直線導軌長得多的導軌。在安裝超長直線導軌時,應采用正確的安裝方法。接下來,我們將詳細介紹超長直線導軌的安裝方法。
The linear guide rack and pinion drive has the advantages of high transmission power, fast transmission speed, and can be spliced with any length; the linear guide has the advantages of fast speed and accurate positioning. Super long linear guide is a kind of guide which is much longer than general linear guide. When installing super long linear guide rail, the correct installation method should be adopted. Next, we will introduce the installation method of super long linear guide in detail.
安裝超長直線導軌時,要對機床進行水平調節。機臺的水平校正要用到兩個等高的量塊以及一個大理石量尺等測量儀器。然后我們必須對導軌安裝的底座進行檢查。
When installing the super long linear guide rail, the horizontal adjustment of the machine tool should be carried out first. The level of the machine calibration to use two equal height measuring block and a marble ruler and other measuring instruments. Then we have to make a comprehensive inspection on the base of the guide rail installation.

導軌安裝底座平面水平調整后,必須用儀器測量來測量出主導軌安裝基面外觀有沒有鑄造時留下的缺陷。
After the horizontal adjustment of the guide rail mounting base plane, the instrument must be used to measure whether the appearance of the main guide rail mounting base plane has defects left by casting.
接下來,我們需要正確處理導軌的安裝基面與側基準安裝面的倒角。在處理這種倒角時,我們必須使用適當?shù)墓ぞ撸缬褪蜾S刀。如果這種倒角處理不當,很可能導致導軌安裝后精度不高,或在導軌工作時干擾滑塊的運行操作。
Next, we need to correctly handle the chamfer between the installation base surface and the side reference installation surface of the guide rail. When dealing with such chamfering, we must use proper tools, such as oilstone or file. If this kind of chamfering is not handled properly, it may lead to the low accuracy of the guide rail after installation, or interfere with the operation of the slider when the guide rail is working.
在此基礎上,就要對導軌安裝基面上面的螺孔進行正確的加工了。為了保證在螺孔加工過程中不出錯,在加工過程中必須使用數控設備進行定位加工。定位加工可以提高螺孔加工的精度。
On this basis, it is necessary to correctly process the screw holes on the guide rail mounting base. In order to ensure that there is no error in the process of screw hole processing, CNC equipment must be used for positioning processing. Positioning processing can improve the accuracy of screw hole processing.
這些準備工作完成后距離安裝就只剩下一步了,那就是對我們購買回來的導軌本身進行必要的檢查,我們需要檢查導軌的證書和的每個參數,然后我們將檢查指導本身是在運輸?shù)倪^程中有沒有壓傷變形,檢查后,待檢查完之后我們就可以對導軌進行正式的安裝了。
After these preparations are completed, there is only one step left from the installation, that is, to carry out the necessary inspection on the guide rail itself purchased by us. First, we need to check the certificate and all-round parameters of the guide rail, and then we will check whether the guide rail itself is crushed or deformed in the process of transportation, After the inspection, we can formally install the guide rail.
